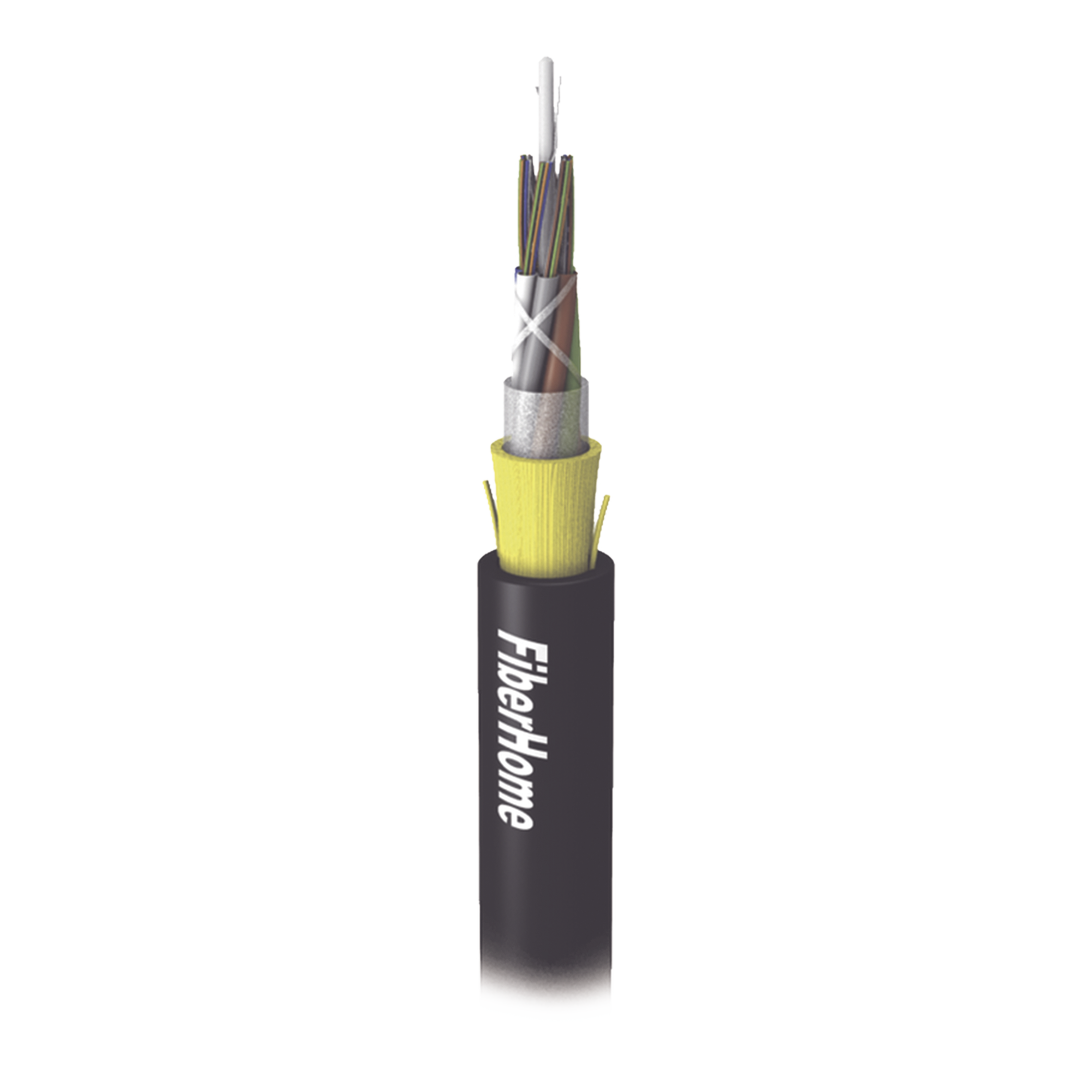

Kilómetro de Fibra Óptica Aérea (ADSS) G.652D, Monomodo de 96 Hilos, Exterior, Span 100, Loose Tube
El cable de fibra óptica ADSS (All Dielectric Self Supported, completamente dieléctrico y autosoportado) está diseñado para instalaciones aéreas entre postes. Los cables ADSS resisten la tracción necesaria gracias a los hilos de aramida, no contiene elementos metálicos.
Especificaciones Técnicas:
- Fibra Óptica ADSS G.652D Monomodo Loose Tube
- Cubierta Exterior: HDPE (Polietileno de Alta Densidad)
- Maxima tensión: 2100N
- Anti-tracking (hasta 110kV)
- Temperatura de operación: -20ºC ～ +65ºC
- Span (Distancia entre Postes): 100 metros
- Protección contra rayos UV y humedad
- Diametro nominal (D): 11.6 ± 0.5 mm
- Radio mínimo de curvatura: Instalación 25D, Operación 12.5D
- Resistencia al aplastamiento: 1000N/10cm
- Peso nominal (kg/km): 101 ± 15 kg/km
- 96 hilos
- Forro Negro
Tensor tipo abrazadera compatible:
Preformado compatible:
